Animal Health
The calves are visually recovering well since the last visit and will be vaccinated for IBR on Sat.
The pen areas were calculated for the old slatted shed and they measure 4.6m x 4.6m in 3 pens and 4.6m x 4.88m in 1 pen. The yearlings will be housed there and will require 2.2m2, which means that there will be space for 9 cattle in the smaller pens and 10 cattle in the bigger pen. Proinnsias has the option to feed cattle on two sides of the shed and because of this there is sufficient feeding space for 15-16 cattle at 0.6m/head but lying space is the limiting factor. Work in Teagasc, Grange and across the world has shown a 20kg difference in carcass weight of 650 – 700kg for steers housed from 2 – 3m2 so lying space is very important.
Good ventilation happens when enough clean air moves through the shed to remove gasses, odours, dust and bacteria. It should also remove the moisture and heat generated by the animals. To be effective it needs to work on calm days. Fresh air is actually a disinfectant, if a virus is coughed up in a building, it will last for 20 hours. However, if the same virus is coughed up outside in fresh air, it will last for about 20 minutes. Air actually deactivates the virus, so we need to make the maximum use of fresh air in sheds. The ‘stack effect’ is a ventilation method and is driven by the heat produced by the animals and by the roof slope. The animals produce heat and warm the air. The warm air rises following the slope of the roof, escaping through the outlet (highest point of the house) and is replaced by clean fresh air via the inlet.
The ventilation inlets and outlets were calculated for the slatted shed which is computed based on the average animal weight, the number of animals to be housed, the total shed floor area and two charts (to get the ventilation outlet area and the height factor). The air inlets should be double the air outlets. There was more than enough of an air outlet in the shed (area above the feed barrier) but the air inlet through the slits in the side sheeting was a lot less than required at 0.166m2, whereas 3.68m2 is required. However this can be easily fixed by doing one of three options:
- Push out the bottom of the side sheeting by 20cm
- Increase the existing slits to 35cm wide (risk of draughts and rain entering as they are on the side of the prevailing wind)
- Replace the existing sheeting with a gale breaker

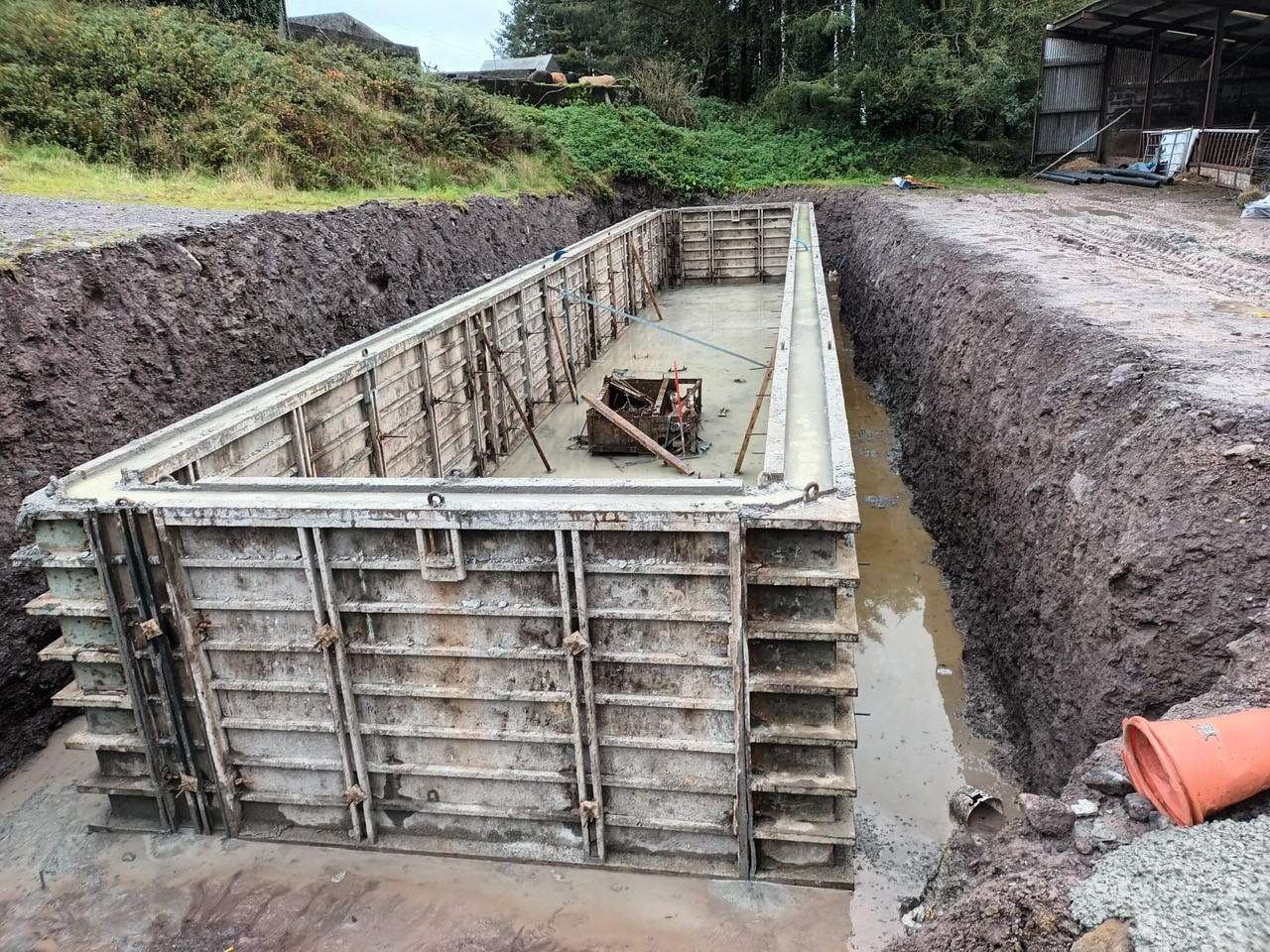

Steady progress has been made on building the new slatted shed with the tank now in place. It will be allowed to set for a few weeks before being backfilled so Proinnsias hopes to have it ready for housing cattle around late December which will be a huge help to him.
